Prev: 230508-1437 CBDM 5 - MapReduce

MapReduce2

• Key is to write the map part and reduce part, the distribution happens by magic by the thing
  • I generate key/value pairs in a way that keys that should be grouped together are the same or similar
  • Reduce - I write as if I get keys>[list of values]
  • Magic inbetween, distribution into nodes in a reasonable way etc. not by me.

Termhäufigkeit MR example

• Sl.15 - Termhäufigkeit
  • Generates (term, 1) for each time this term was found
  • My question: can we do (term, 4) etc. and sum the values instead of occurrences?
  • A: it’s a trade-off: more pairs = more networktransfer, but code is easier and prolly faster:
• Sl. 21 - Vektormodell doc similarity through MapReduce
  • Trick: one can put information inside keys if one can, such as:
    • (d1,d3,6*6): we put the product of vector lengths of d1/d3 inside the key (we can take the root later)

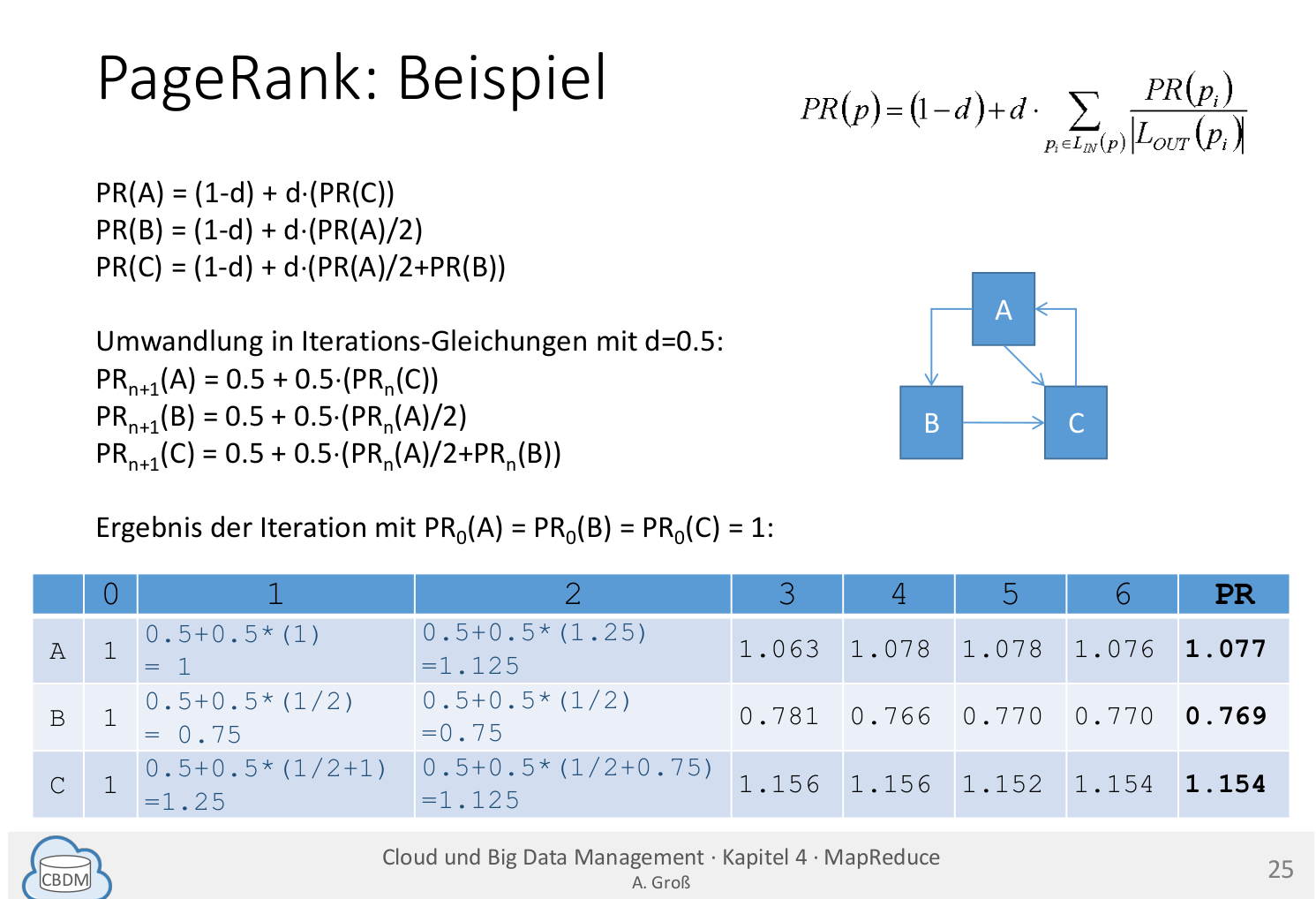

PageRank + MapReduce example

PR

• PR of a page is based on NUMBER and PR of websites linking to it

  • Sl.23

• Google Ranking ~= $relevanceToSearchTerms*PageRankOfPage$

• Modelled as a person clicking links and the davon ausgehende probabilities

  • A page linking t omany makes its links be ‘worth’ less

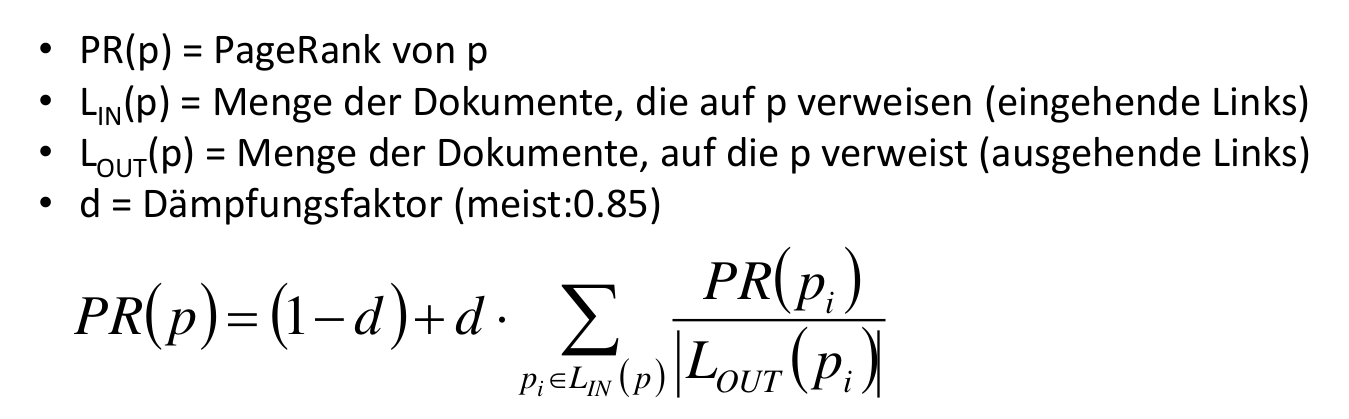

• Formula:

  •
  • for each incoming link, sum (its PR / by the number of ausgehende links of that page)
  • all this with a Dampfungfaktor $d$

• Two ways to calculate:

  • Linear Gleichung with many unknowns
  • Recursive, therefore we start with some values like 1 and then iterate, each iteration changing teh PR of all pages:
    • (Columns are the iteration steps)

PR + MR (iterative option)

• Paralellisierbar, weil
  • PR of pages independent at each step
  • Next step depends only on prev step
• Process: Sl.27
• Trick: same input shape as output, to iterate

Clusteranalysis (K-Means) + MR

• Cluster analysis:

  • build things into clusters, so that items in clusters are as similar as possible while things in different clusters should be as little similar as possible
  • similarity however defined, e.g. Euclid distance

• K-Means:

  • • In: $k$ clusters to build
  • Init (once): Pick random centres for each
  • Objects ‘belong’ to the clusters whose center is closest to them
  • Re-calculate cluster centers
  • Repeat until centers stop moving

• Paralelisierbar, weil:

  • objects-to-cluster Zuordnung independent from other objects
  • Cluster-centers of clusters independent from other clusters

• You can provide context - will be seen in praktikum

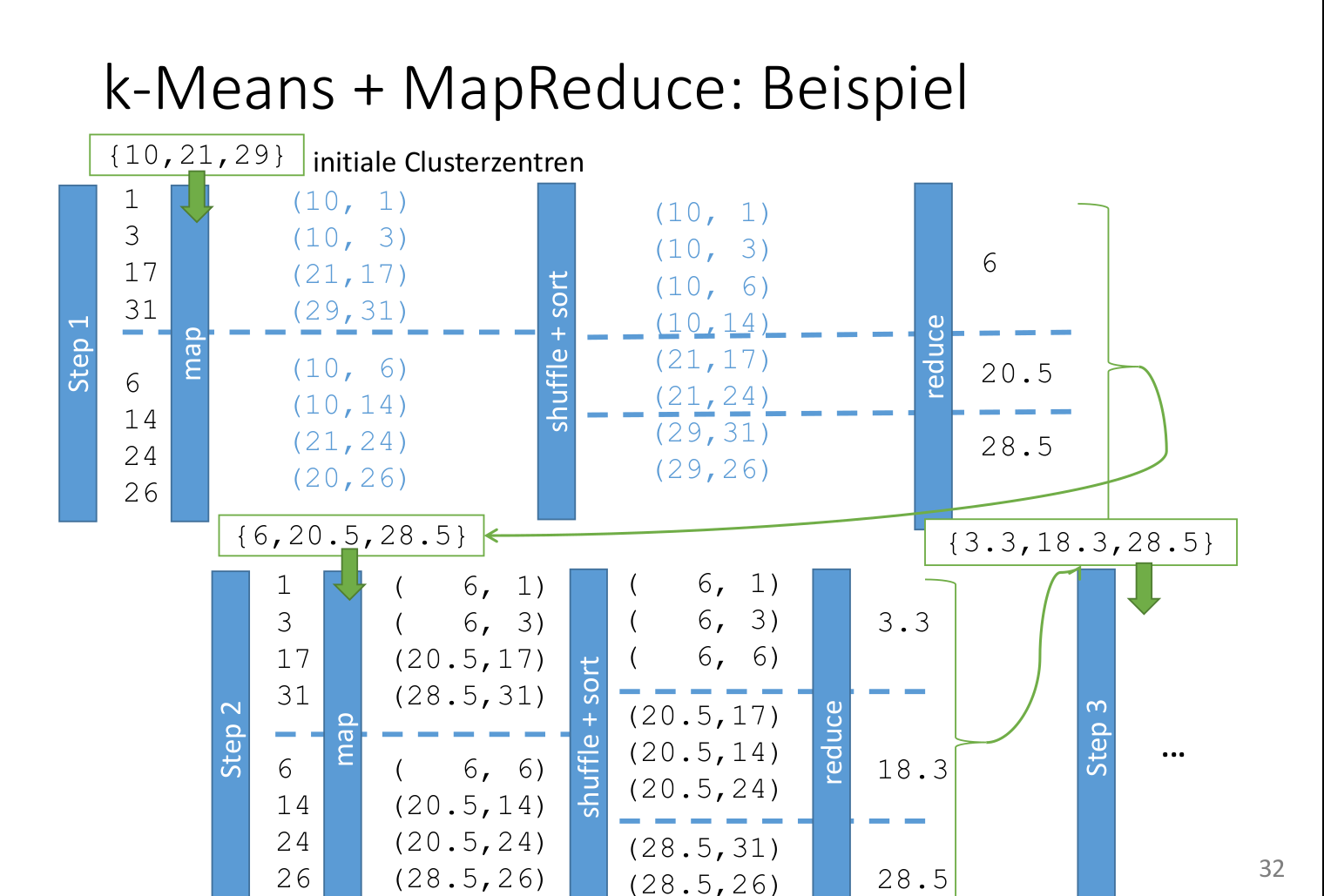

• MR process:

  • Map:
    • given:
      • existing objects (identical all iterations, given through context)
      • list of all actual cluster centres
    • objects-cluster mapping
  • reduce:
    • object with the same cluster-center
    • calculation of new cluster-center for them
  •

Hadoop

Basics

• Hadoop is an Open-source Alternative to Google’s proprietary/unavailable 2004 MR

• Unix-ähnlich OS, Java 8/11

• Große community etc.

• Implements MR, no need to write OpenMPI and parallelisierungs code etc.

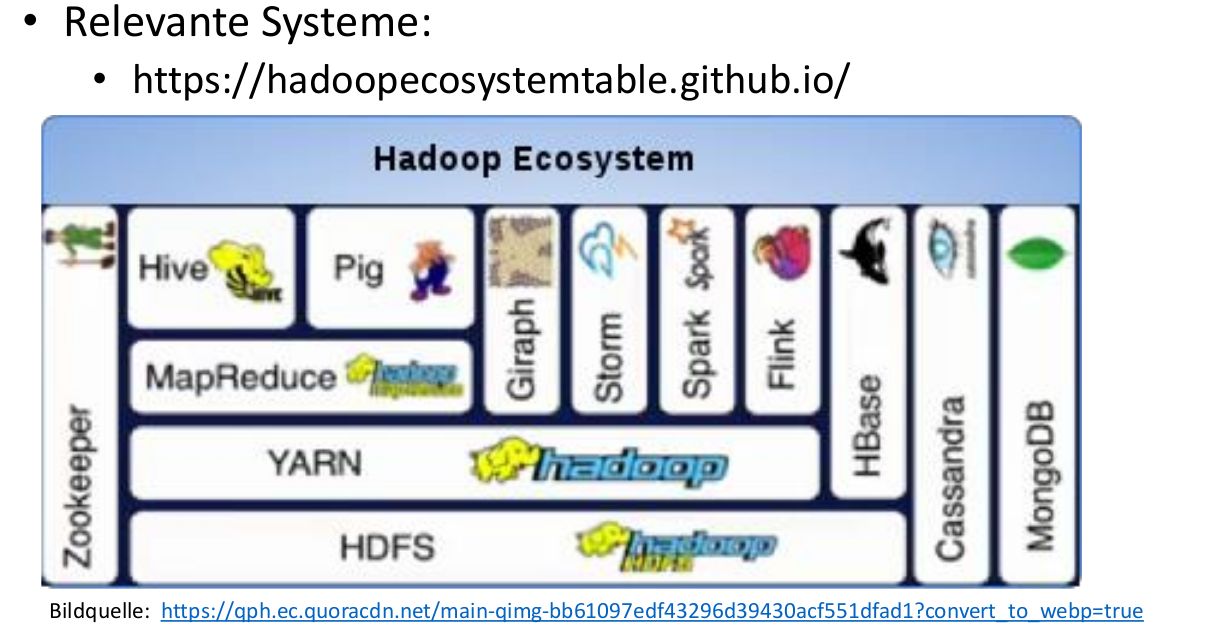

• Ecosystem:

  •
  • “spark is better because everything in RAM, but origial MR is basis for it”

• Java example of map and reduce functions Sl.36

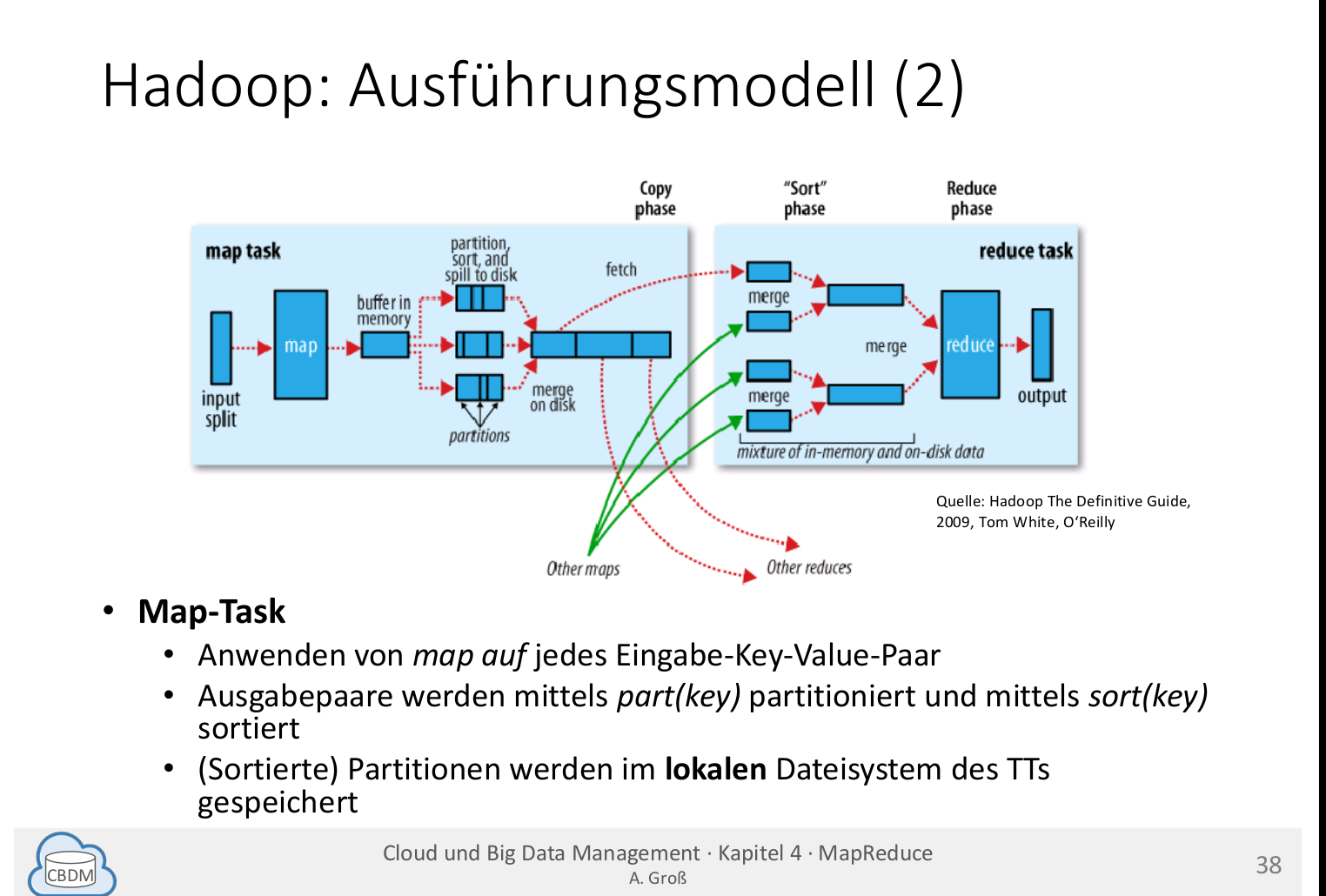

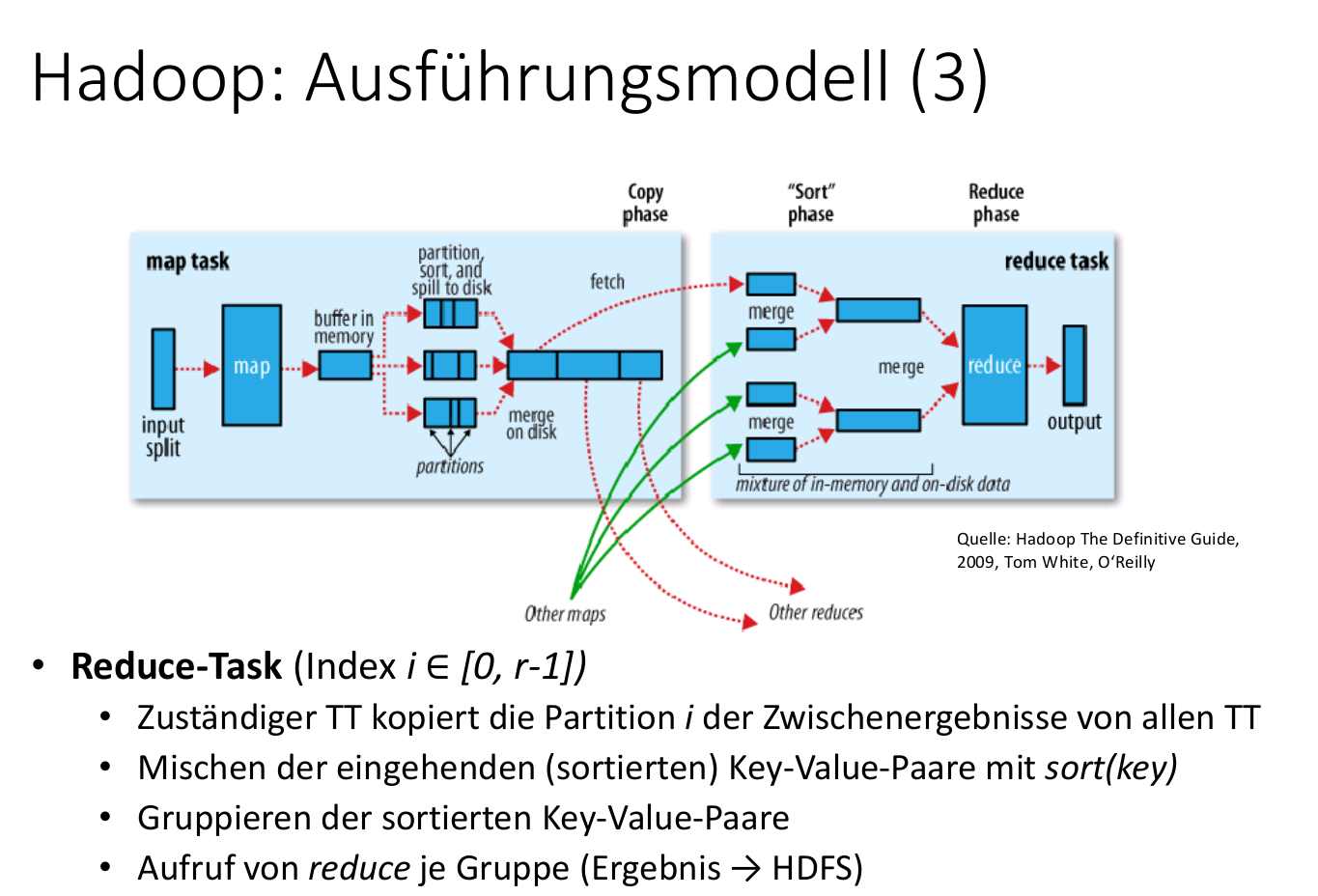

Hadoop: Ausführungsmodell

• Tasktracker (TT) starts a set statically configured number of Map-slots and Reduce-slosts
  • 10 map/reduce slots means max 10 map/reduce operations doable at the same time
• Jobtracker (JT) tracks done/failed/running tasks
• TODO: Sl. 38/39 - understand :
  •
  •
  • Something about data on disk and RAM etc.
  • Internal shuffle-sort?
  • ???
